Introduction

Maintaining oil purity is essential for achieving long-term stability and performance in industrial systems. The Ameroid PTU Type Filter is a high-performance oil filtration and coalescing system designed to remove fine impurities and water from various oils, including hydraulic, lubricating, and vacuum pump oils. Built on Japanese engineering excellence, this filter delivers unmatched reliability and efficiency for modern manufacturing environments.

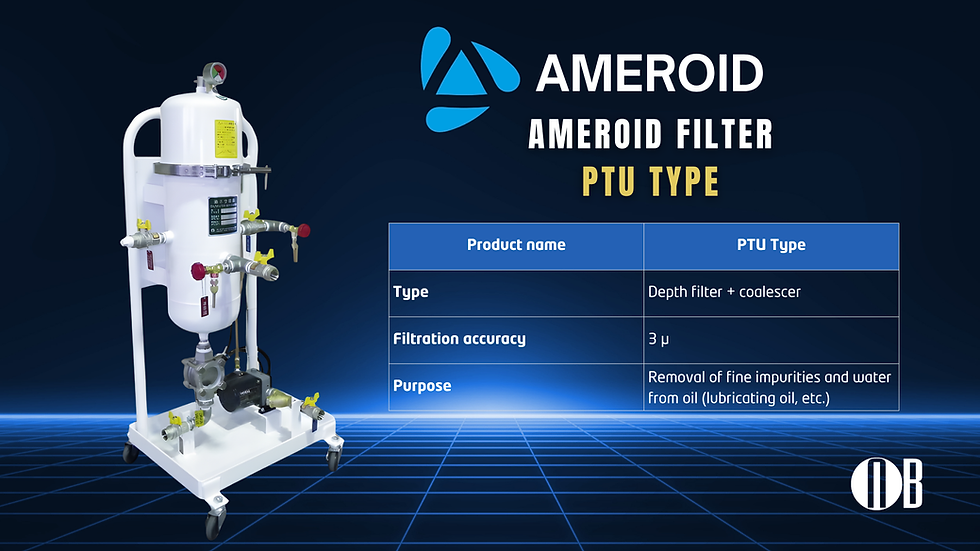

White industrial filter on blue grid background, titled "AMEROID FILTER PTU TYPE." Text details: type, accuracy, and purpose of filtration. — High-performance Ameroid PTU Type Filter for oil filtration and water separation, enhancing machinery protection and reducing maintenance costs with 3-micron accuracy.

Unmatched Oil Purity with Ameroid PTU Type Filter

The PTU Type Filter by Nichiboku combines a CJC depth filter with a coalescer-type oil-water separator, ensuring absolute filtration accuracy of 3μ.This dual-function design makes it possible to restore even cloudy, contaminated oil to its original clarity, extending equipment life and reducing maintenance costs.

Key Benefits:

High Filtration Efficiency: Removes fine impurities and water to maintain optimal oil condition.
Restores Oil Clarity: Even heavily contaminated or cloudy oil regains transparency.
Compact & Integrated Design: Combines filter and coalescer into one compact unit.
Versatile Application Range: Available in multiple models to handle capacities from 45L/h to 1,000L/h, suitable for both small and large-scale systems.
Cost-Effective Maintenance: Reduces waste oil generation and extends oil replacement intervals.

Applications and Performance

The Ameroid PTU Filter is ideal for a wide range of industrial systems that depend on clean oil for stable operation:

Hydraulic and turbine systems
Vacuum pumps and compressors
Lubrication systems for production machinery
Oil recycling and waste oil recovery systems

By ensuring the removal of both solid impurities and water, the PTU Filter helps achieve stable operation, reduced wear on machinery, and lower overall operating costs.

Specifications Overview

Model	Flow Rate	Size (W×D×H mm)	Weight	Power	Oil Capacity	Power Supply
15/25	2 L/min	510×430×1030	40 kg	75W	5L	AC100V/200V
15/50	2.5 L/min	510×430×1230	50 kg	75W	9L	AC100V/200V
27/27	3 L/min	600×750×1040	80 kg	0.2kW	45L	AC100V/200V
27/54	6 L/min	600×750×1300	100 kg	0.2kW	55L	AC100V/200V
27/81	9 L/min	600×750×1600	120 kg	0.4kW	70L	AC100V/200V
27/81W	18 L/min	650×1300×1640	250 kg	0.4kW	70L×2	AC100V/200V

Optional accessories include an automatic water discharge valve and a control panel for fully automated operation.

Why Choose Ameroid PTU Type Filter

Choosing the Ameroid PTU Filter means investing in a proven solution that enhances equipment reliability and sustainability.With advanced Japanese filtration technology, this system not only protects valuable machinery but also contributes to environmental responsibility through waste oil reduction and extended service intervals. NB- AMEROID section page:

Enhance System Cleanliness with Nichiboku Ltd.

At Nichiboku Industrial, we provide advanced filtration solutions, including Ameroid FL Type filters for flushing applications. Contact us today to improve your system’s cleanliness and reliability with our trusted industrial products.
